Wagner Tuning Competition Intercooler Kit | 11-16 Nissan GT-R 35 (200001106)

2011-2016 Nissan GT-R R-35 Intercooler Kit by Wagneh

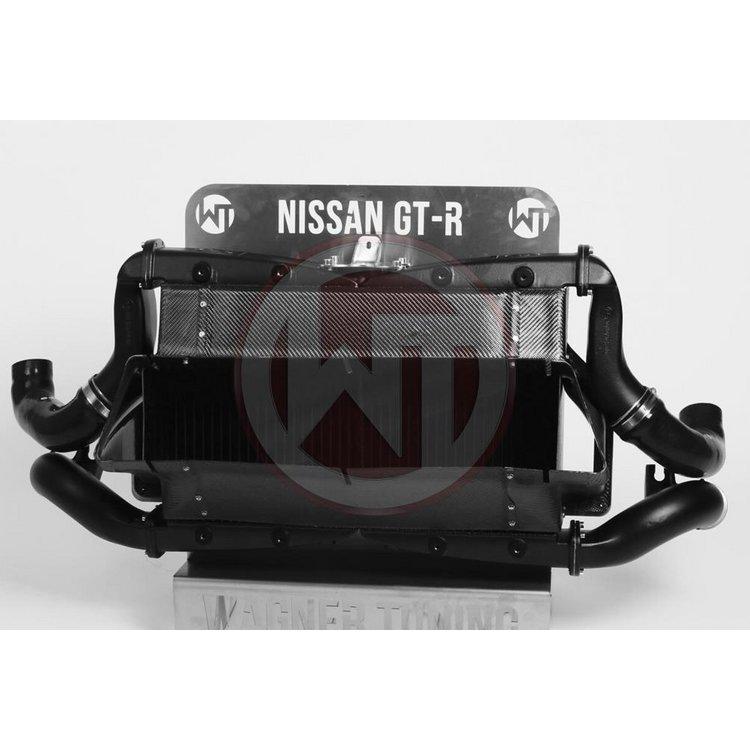

This competition intercooler for the Nissan GTR R35 has the following core

size 2x 360mm x 294mm x 110mm= 23300cm_, providing a 76% larger frontal area and 94% more

volume compared to the original intercooler.

Our engineers have increased the intercooler core size and efficiency, as

well as improved the end tank design to remove OEM bottlenecks, resulting in increased flow

rating and charge cooling properties. The weight of the intercooler is 2x 9.1kg. Constructed

using the highest quality Tube Fin intercooler cores combined with cast aluminium end tanks

optimized in our CAD systems. Flow analyses and simulations were created to optimise the

design for best possible internal airflow.

This unique intercooler kit includes, developed in the CAD free form end

tanks made of cast aluminium for optimal internal airflow and a compressive strength of up to

6 bar (tested). Supplied with bespoke carbon air shroud to ensure optimum airflow to the

intercooler, as well as upgrade silicone hoses with enlarged cross-sectional area.

Features

• Increased the intercooler core size and efficiency
• Anti corrosion protective coating

Benefits

• Providing a 76% larger cooling surface and 94% more volume

Applications

• 2011-2016 Nissan GT-R R-35

What’s In The Box?

• 2 – Intercooler powder coated black
• 4 – Aluminum connector
• 2 – Silicon hoses
• 1 – Carbon air shroud
• 1 – Mounting material

References

• Installation

  Instructions

Warranty

• Manufacturer Standard Warranty.
