Intake manifold with integrated Intercooler EVO1 BMW B58 Gen 1 and Gen 2 Engine

Attention pre-orders possible!

final cast aluminum version*

*Delivery time is approx. 2 months

Toyota BMW EVO1 intake manifold with integrated intercooler for the B58.1 engine

Partnumber: 200001204 Fits plug and play to following models:

BMW 1er F20/21 M140i
BMW 2er F22/23 M240i
BMW 3er F30/31 M340i
BMW 4er F32/33/36 M440i

The 3.0 Liter B58.1 turbo engine of the specified BMW models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is realized by a watercooled intercooler, which is integrated directly into the intake manifold.

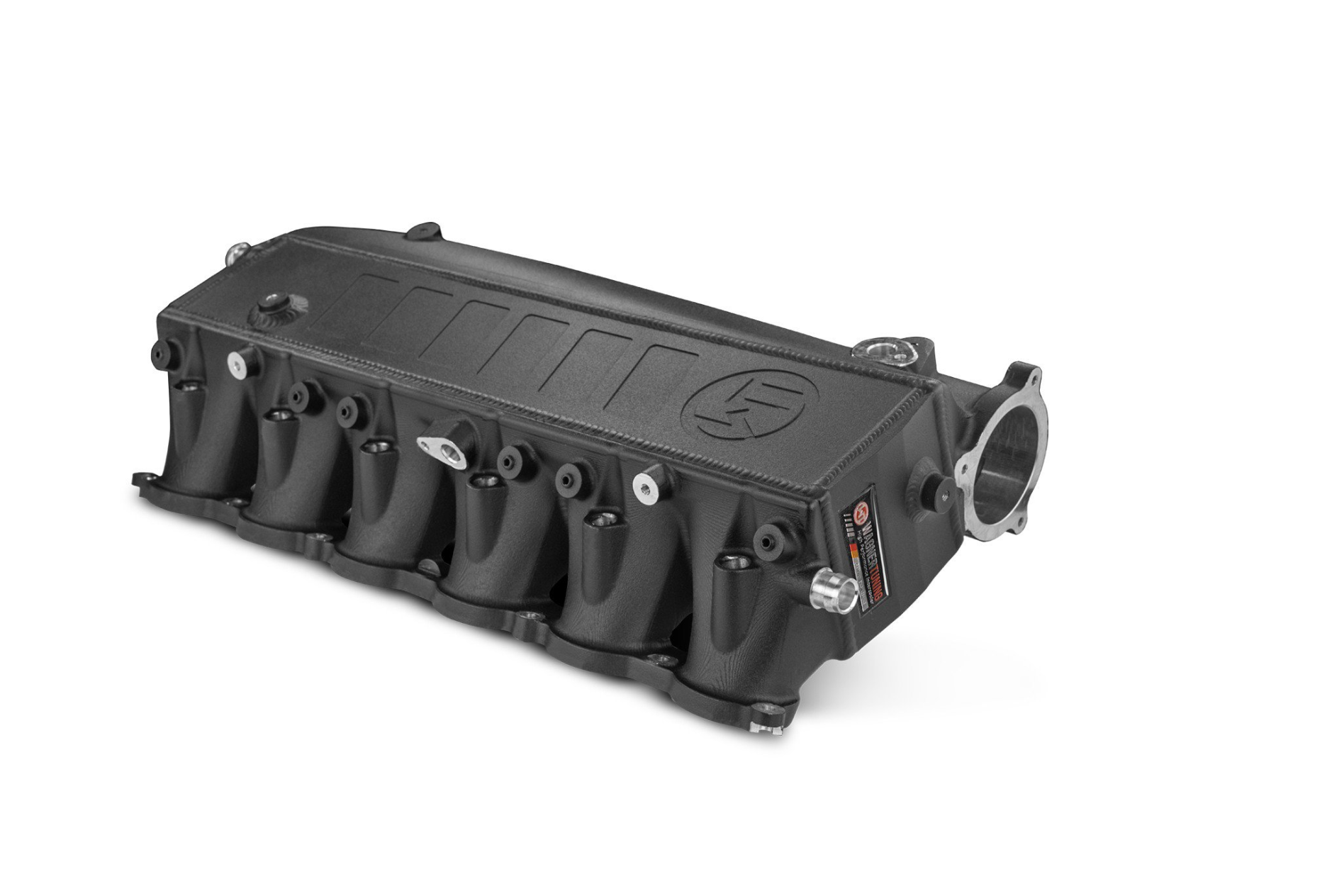

The WAGNERTUNING intake manifold with integrated intercooler has got a new performance core which was specially developed for the high requirements and individual mounting position of the B58.1 engine and offers 128% more external core volume compared to the original intercooler. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and at the same time the best possible internal air flow. With the help of CFD simulations, the CNC-milled endtanks were designed for optimal air flow conditions. The result is an excellent cooling property with a minimal back pressure. That`s why this kit is also perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

All WAGNERTUNING radiators are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Advantages of this product:
– significantly better cooling performance (up to 20°C cooler IAT)
– maximum mechanical discharge of the turbocharger (35% less back pressure)
– more power and torque for your engine
– 100% pressure resistance
– 100% Plug and Play (no modifications)
– preprocessed port fuel injection (Fuel Rail optionally available here )
– three 1/8 NPT ports for measuring additional parameters
– six preprocessed NOS or WMI ports (for example 90° NOS Nozzles 1/16 NPT here )
– this intake manifold is suitable for all performance levels
– up to 4 years warranty
– important information for oil service: the oil filter still can be replaced without removing the intake manifold again!
